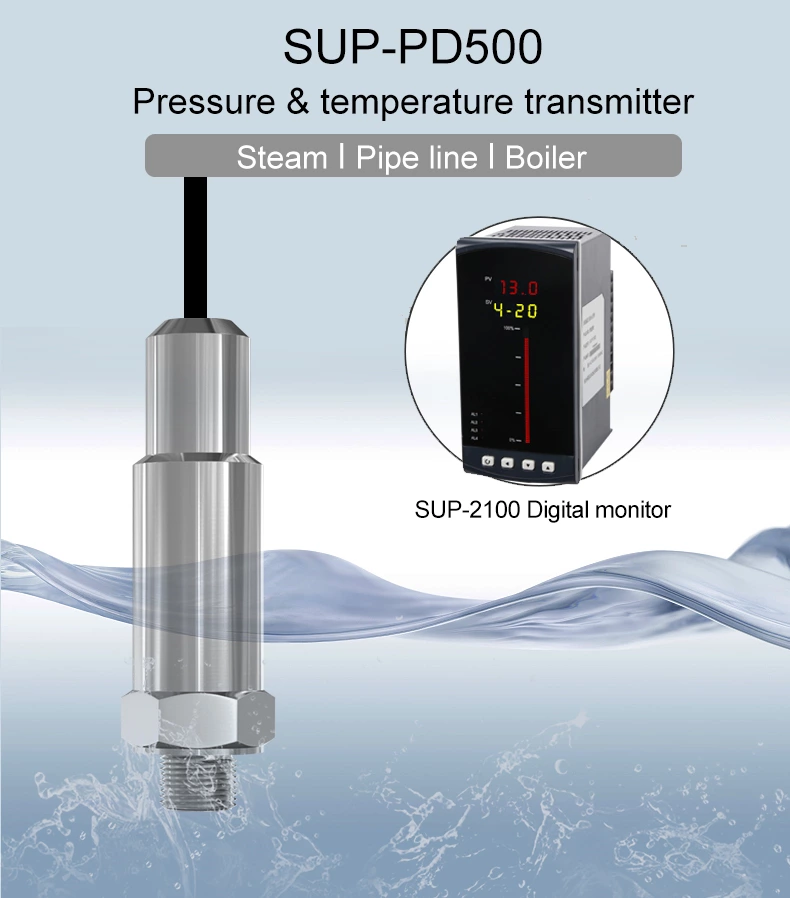

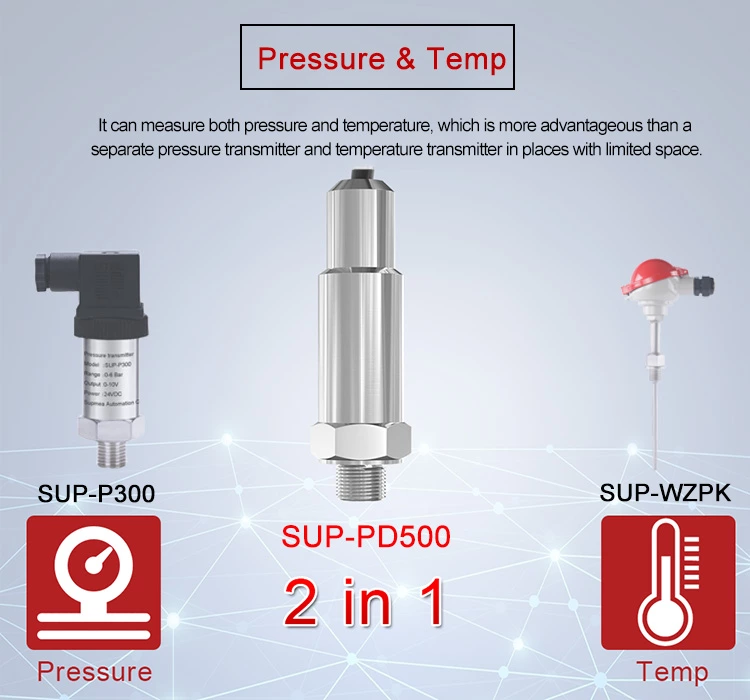

SUP-PD500 is a high performance range of combination pressure and temperature transmitters. Dual 4-20mA outputs make it very powerful and efficient transmitters especially where space is at a premium or it is essential to measure both parameters in the exact same location.
Features
Range: 0～600kPa…60MPa
Resolution: Pressure: 0.5% F.S; Temp: 2.5% F.S
Output signal: 4…20mA
Installation: Thread
Power supply: 12-30V
-
Specification
| Product | Pressure transmitter |
| Model | SUP-PD500 |
| Measure range | 0～600kPa…60MPa |
| 0～+80 ℃ | |
| Pressure type | Gauge pressure |
| Accuracy | Pressure: 0.5% F.S; Temp: 2.5% F.S |
| Output signal | 4…20mA; 1…5V; 0…10V; 0…5V; RS485 |
| Temperature compensation | -10…60 ℃ |
| Medium temperature | -30…65 ℃ |
| Overload pressure | 150%FS |
| Long-term stability | ± 0.2%FS/year |
| Power supply | 12-30V |

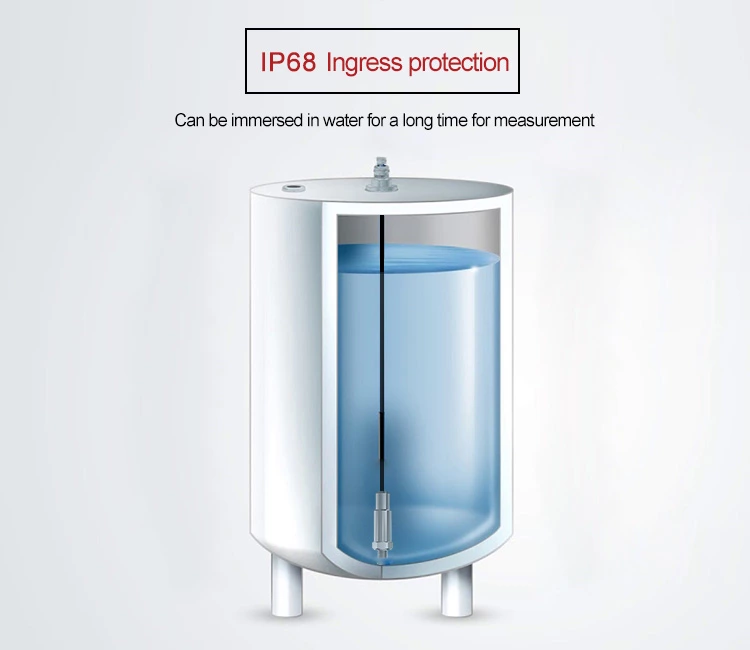

| Ingress protection | IP68 |
-
Introduction
Noted: the product strictly prohibited to be used in explosion-proof occasions.
-
