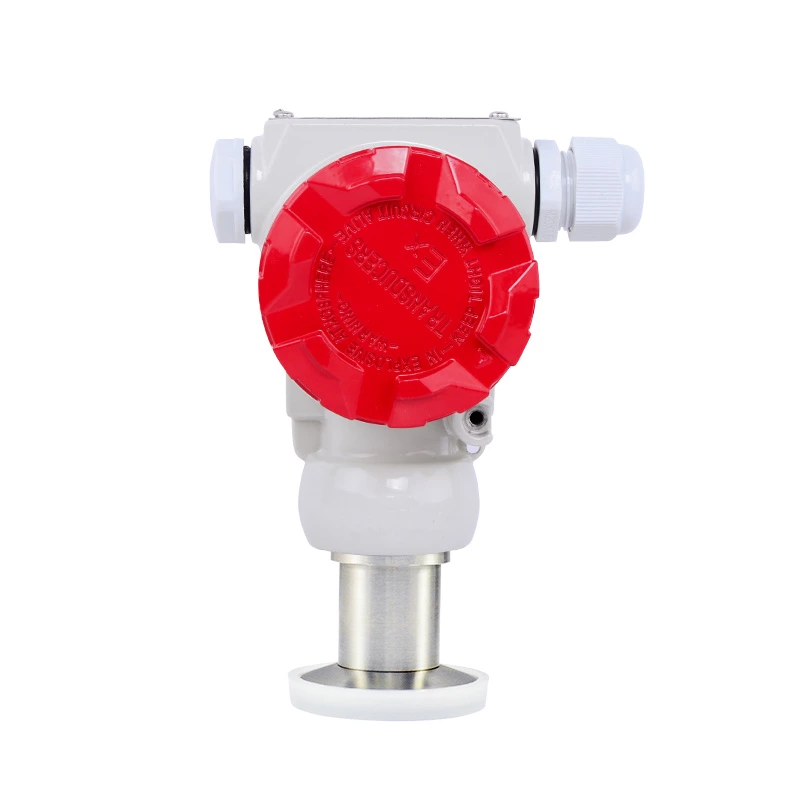

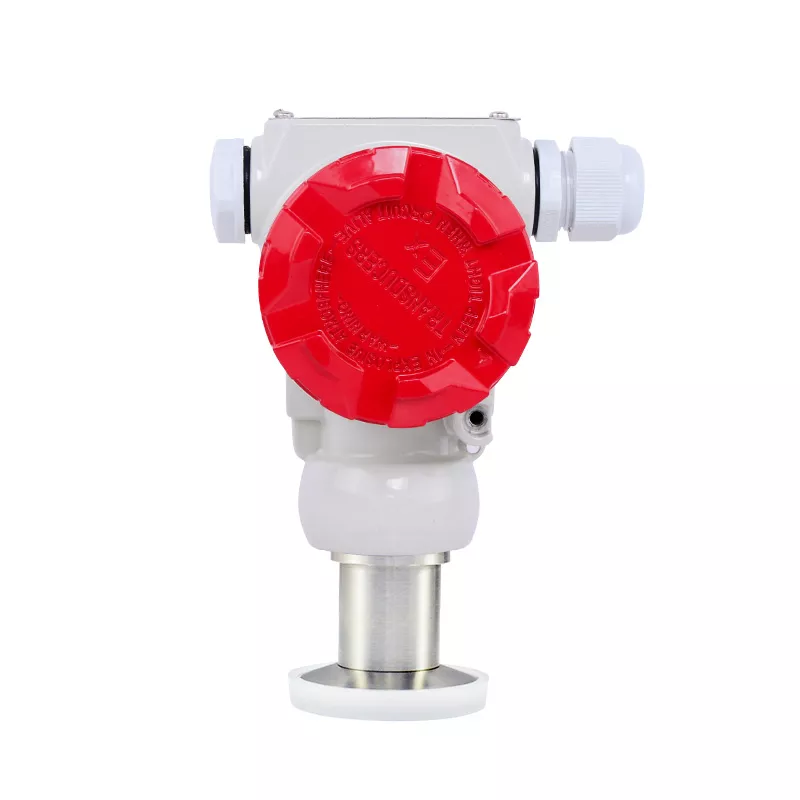

SUP-P450 is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output.
Features
Range: -0.1~ 0 ~ 40MPa
Resolution: 0.5% F.S
Output signal: 4~20mA; 1~5V; 0~10V; 0~5V; RS485
Installation: Clamp
Power supply: 24VDC (9 ~ 36V)
-
Specification
| Product | Pressure transmitter |
| Model | SUP-P450 |
| Measure range | thread: -0.1MPa…0~10kPa…10MPa;
lathedog: -0.1MPa…0~10kPa…7MPa |
| Indication resolution | 0.5% |
| Compensation temperature | -10~70℃ |
| Ambient temperature | -10~85 ℃ |
| Medium temperature | -20~85℃ |
| Storage temperature | -40~85℃ |
| Output signal | 4-20mA analog output |
| Pressure type | Gauge pressure; Sealed pressure |
| Measure medium | Liquid; Gas; Oil etc |
| Pressure overload | 150%FS |
| Power | 4~20mA with display:12~30V
4~20mA no display:9~30V 4~20mA+RS485:12~30V 0~10V no display:12~30V |
| Ingress protection | IP65 |
-
Introduction
SUP-P400 Digital Smart LED/LCD display with shell Industrial Pressure Transmitter
