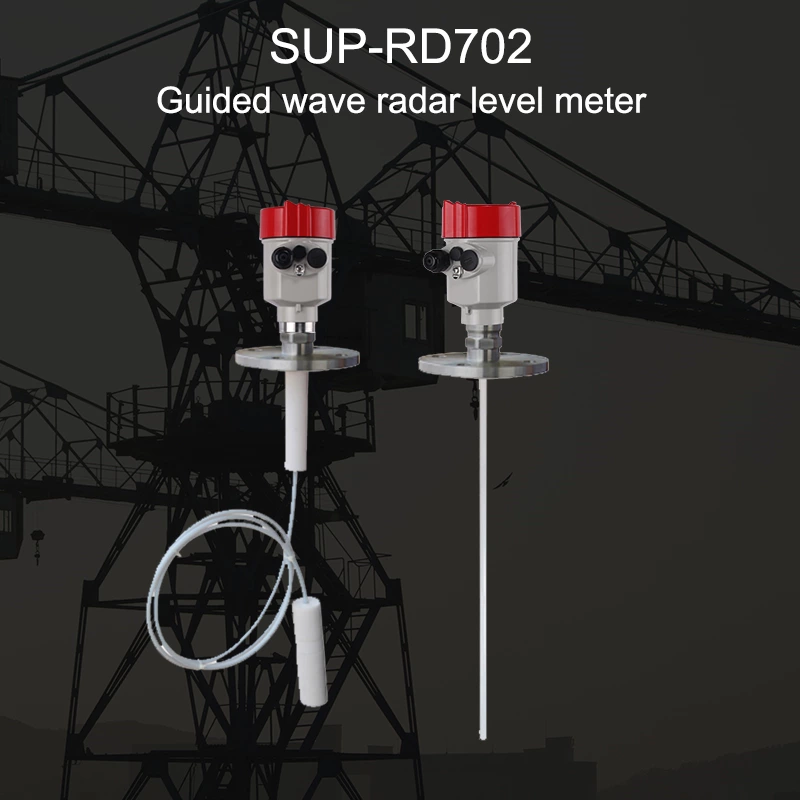

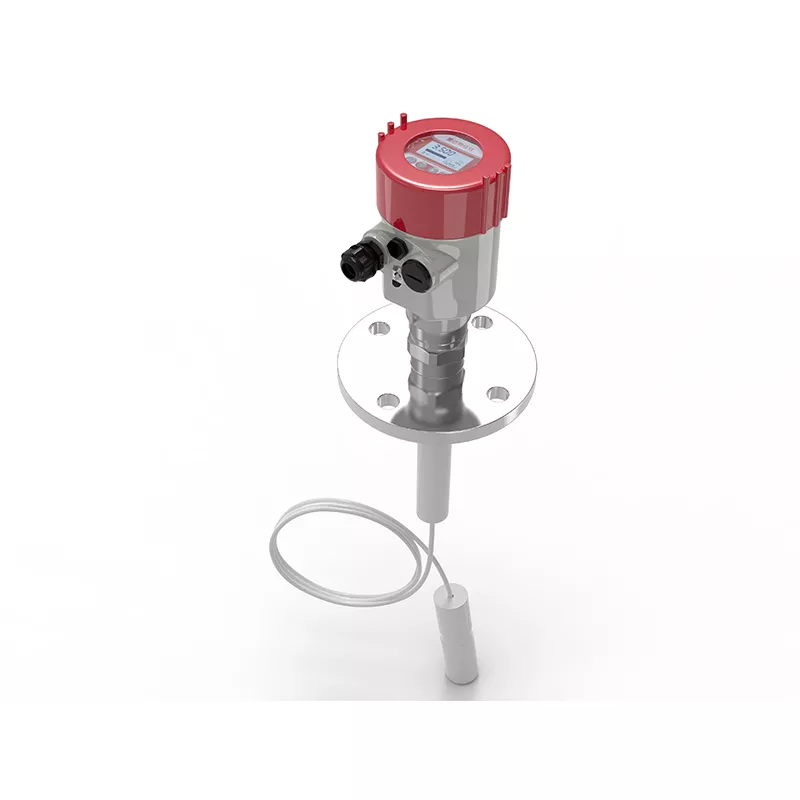

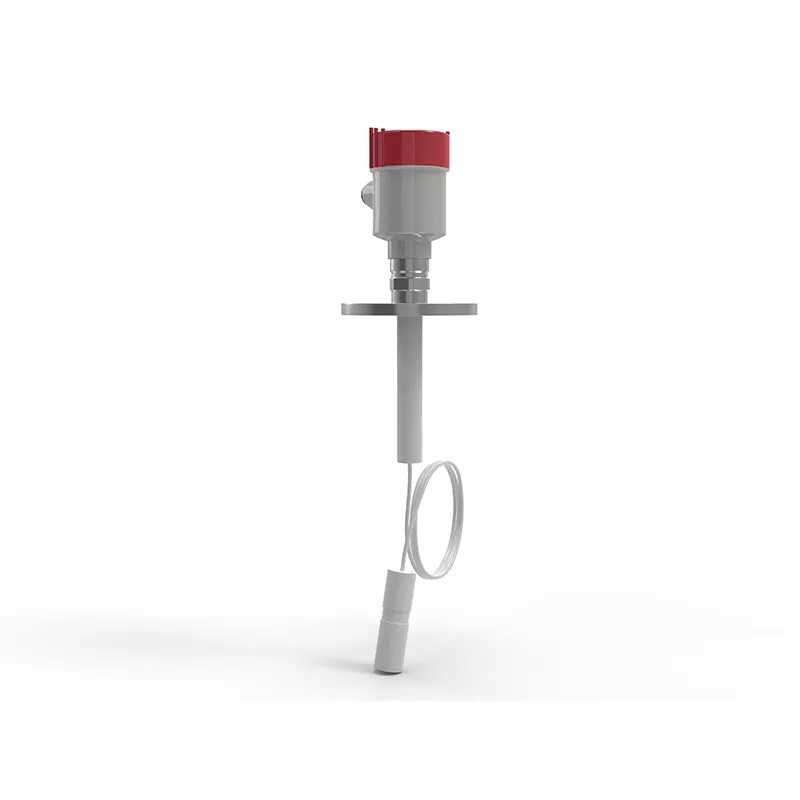

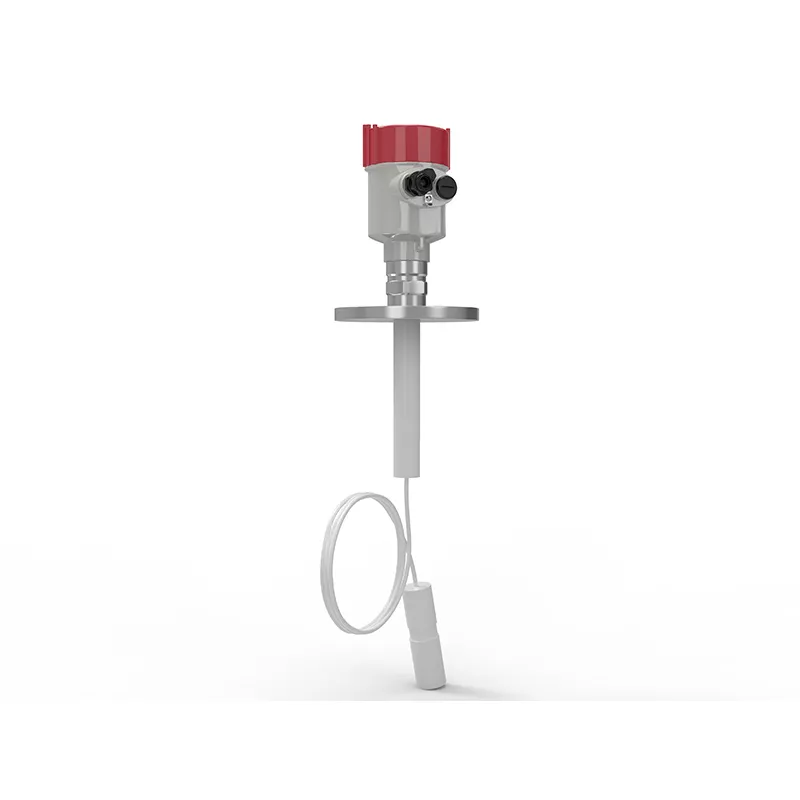

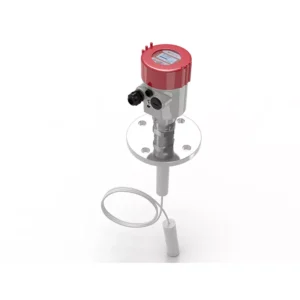

SUP-RD702 Guided wave radar for level measurement in liquids and bulk solids. In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. PTFE antenna, suitable for corrosive medium measurement.
Features
- Range: 0~20 m
- Application: Acid, alkali, other corrosive media
- Frequency Range: 500MHz ~ 1.8GHz
-
Specification
| Product | Guided wave radar level meter |
| Model | SUP-RD702 |
| Accuracy | ±5mm（range 2m） ±10mm（range 10m） |
| Application | Acid, Alkali, Other corrosive media |
| Process connection | Thread/Flange(optional) |
| Medium temperature | -40℃~200℃ |
| Process pressure | -0.1 ~ 0.3MPa |
| Ingress protection | IP67 |
| Frequency range | 500MHz-1.8GHz |
| Signal output | 4-20mA/HART |
| RS485/Modbus | |
| Power supply | (24VDC)/ Two-wire (24VDC/220VAC) / Four-wire |
-
Introduction
SUP-RD702 guide wave radar level meter can launch high frequency micro-waves which transmits along with probe.
-

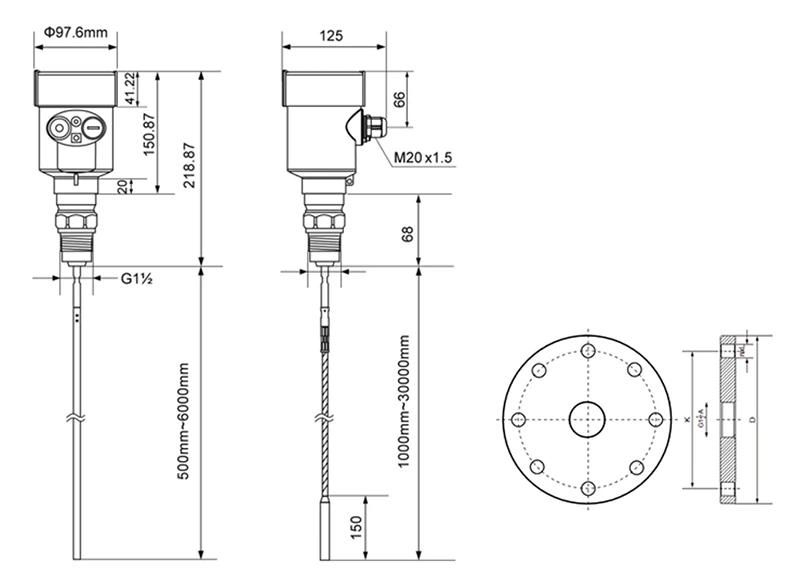

Product Size
-

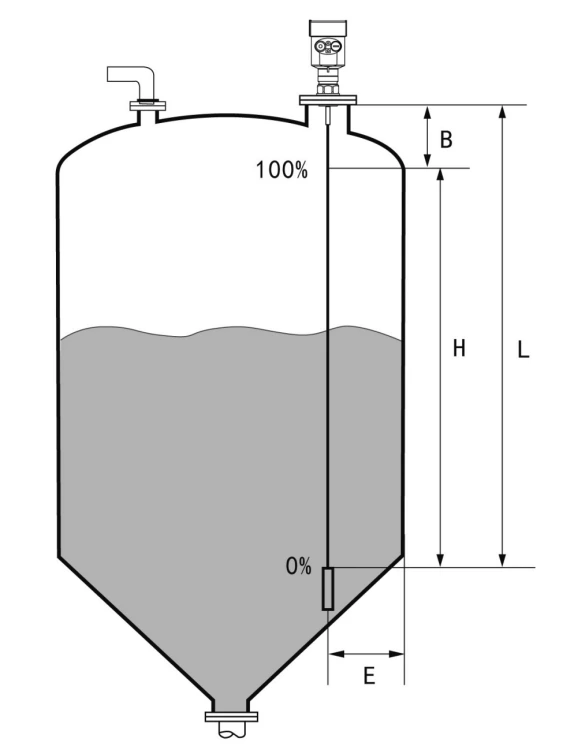

Installation guide
H—-Measuring range
L—-Empty tank height
B—-Blind area
E—-Minimum distance from probe to tank wall >50mm
Note:
The top Blind area refers to the minimum distance between the highest material surface of the material and the measurement reference point.
Blind area at the bottom refers to a distance that cannot be accurately measured near the bottom of the cable.
The effective measurement distance is between the top Blind area and the bottom Blind area.
