5m~20m(solid)
Liên hệ

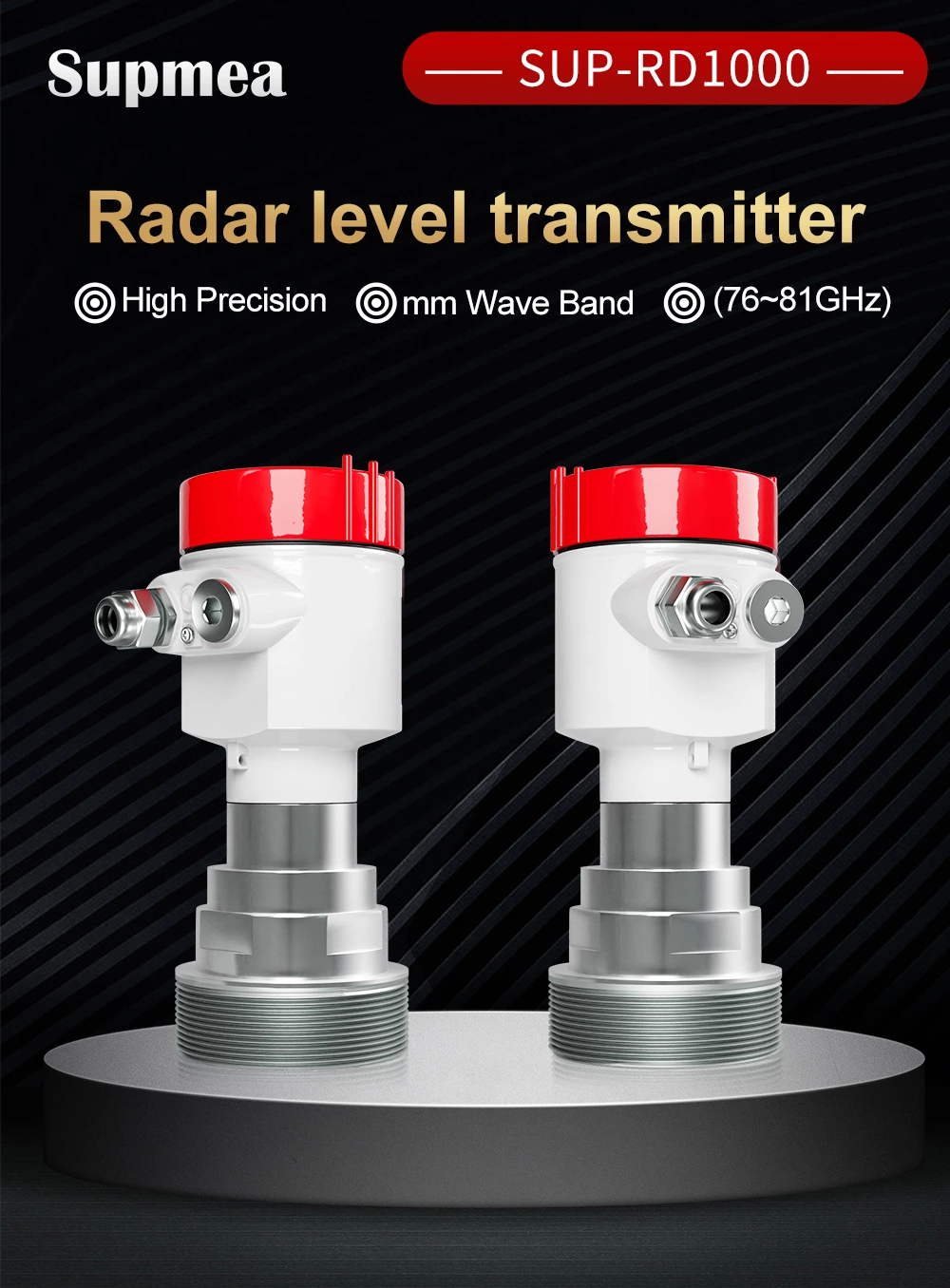

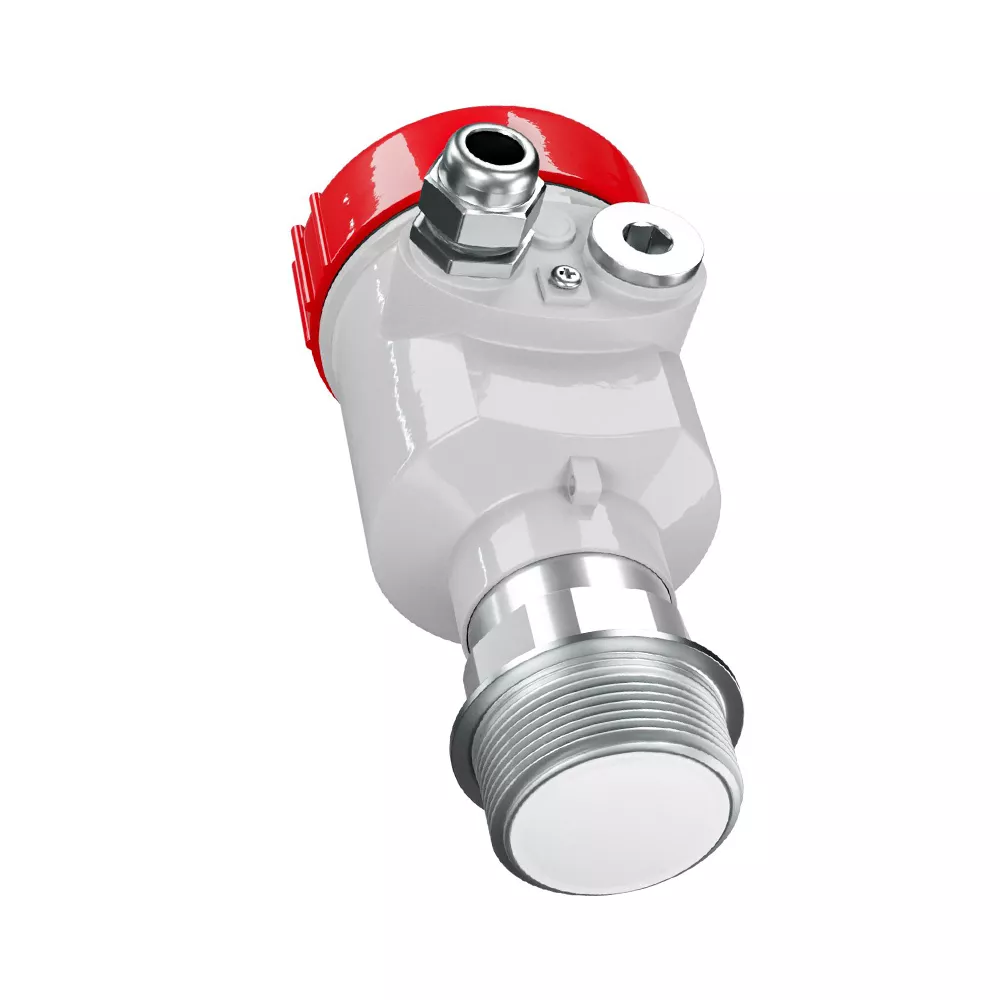

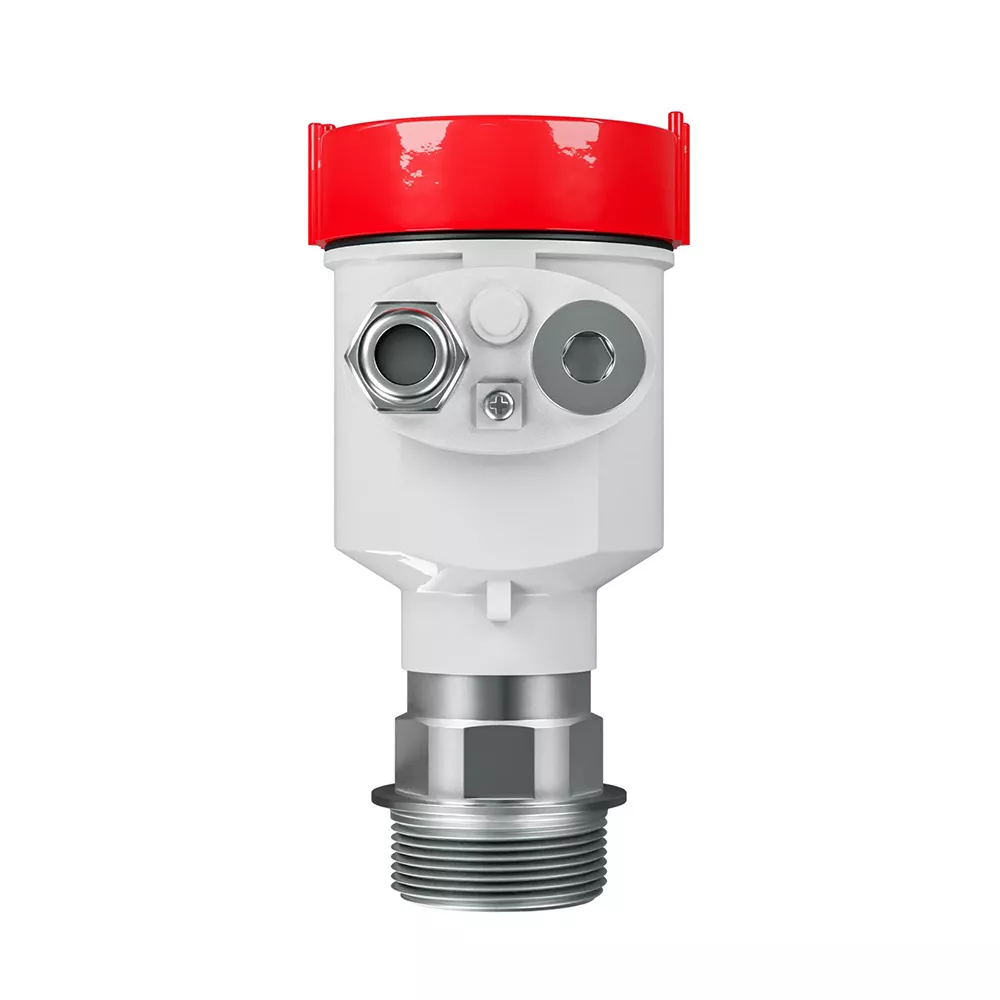

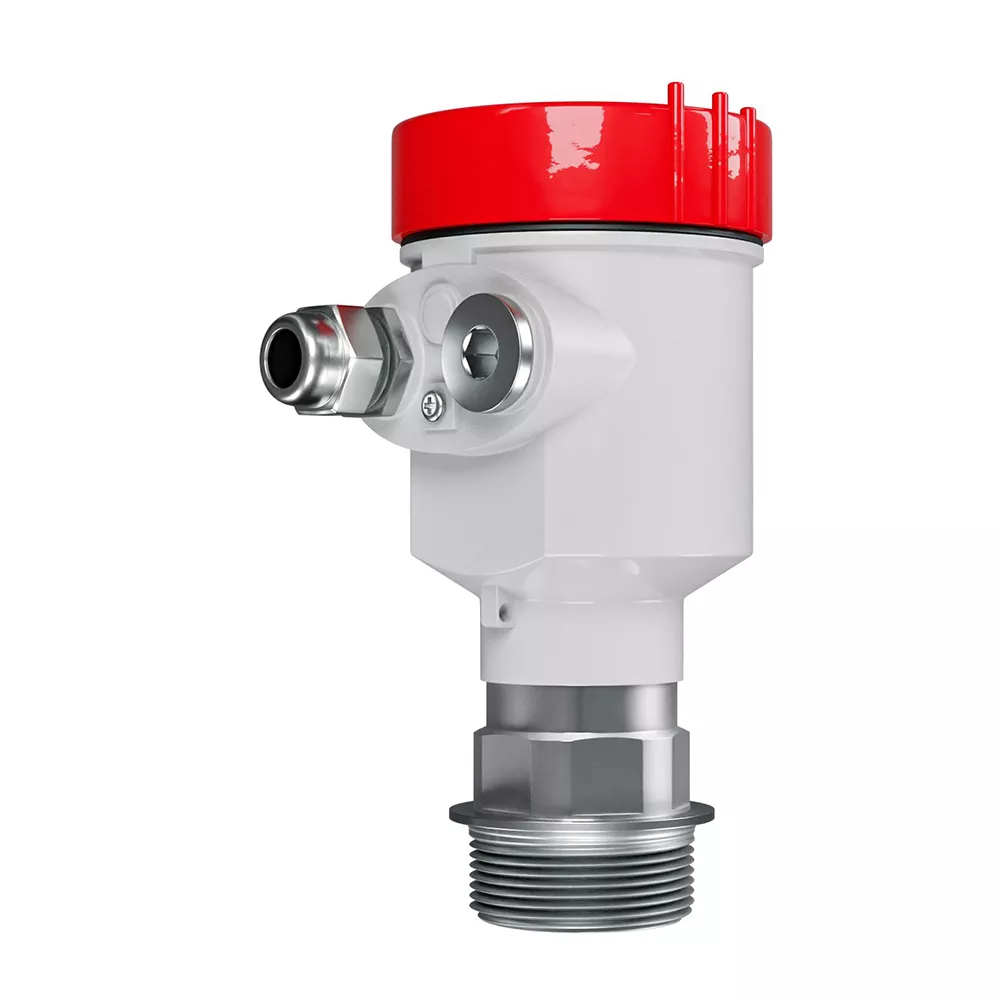

SUP-RD1000 80GHz Radar level meter uses the millimeter wave band with a higher frequency than the Ku-band radar.
Features
Measure Range:5-20 meters
Frequence Range:80GHz
Accuracy:0.1%FS
- Specification
| Product | Radar level meter |
| Model | SUP-RD1000 |
| Measure range |
|
| Frequence range | 80GHz |
| Humidity | 0% -95% RH |
| Temperature resistance | -30℃~150℃ |
| Accuracy | 0.1%FS |
| Display | 128*64 LCD |
| Electrical interface | M20*1.5(F) |
| Signal output | 4-20mA |
| RS485/Modbus or HART | |
| Power supply | DC24V (22V~30V) |
- Introduction
SUP-RD1000 80GHz Radar level meter uses the millimeter wave band with a higher frequency than the Ku-band radar. It has important applications in long-distance target detection, strong smoke and dust environments, long-distance imaging, multi-spectral imaging, etc.And it can detect smaller targets and achieve more precise positioning than microwave radar, with higher resolution and stronger secrecy.
