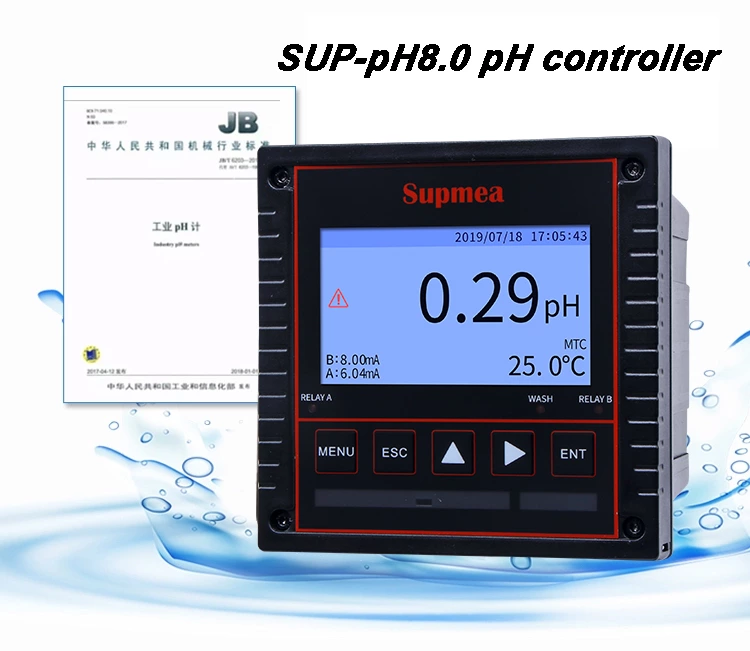

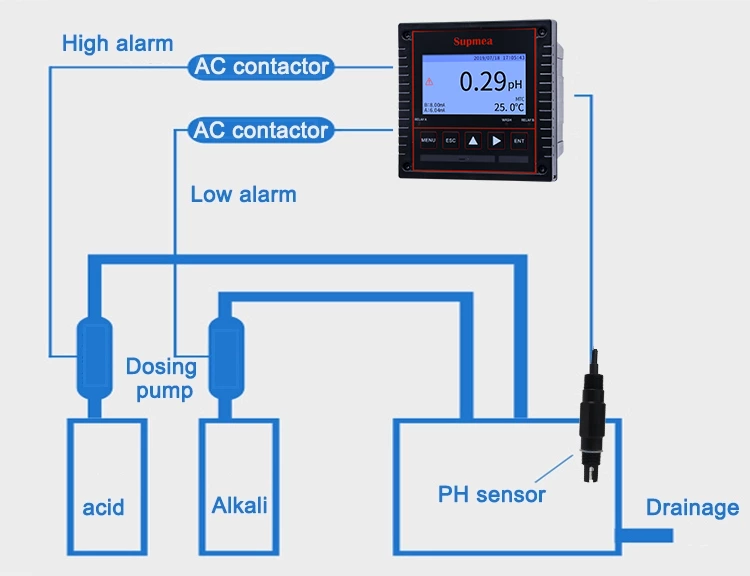

SUP-PH8.0 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.
Features
Measure range: pH: -2-16 pH, ±0.02pH; ORP: -1999 ~1999mV, ±0.1%FS
Input Resistance: ≥10~12Ω
Power supply: 220V±10%，50Hz/60Hz
Output: 4-20mA, RS485, Modbus-RTU, Relay
- Specification
| Product | pH meter, pH controller |
| Model | SUP-PH8.0 |
| Measure range | pH: -2-16 pH, ±0.02pH |
| ORP: -1999 ~1999mV, ±0.1%FS | |
| Measuring medium | Liquid |
| Input Resistance | ≥1012Ω |
| Temp compensation | NTC 10K:-10~60℃ accuracy:±0.3℃
60~130℃ accuracy:±2℃ PT1000/PT100:±0.3℃ Manual/ Auto temperature compensation |
| Temperature Range | 0~60℃， NTC10K or PT1000 |
| Communication | RS485, Modbus-RTU |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | 100- 240VAC，50Hz/60Hz,5W Max |
| Relay output | 250V, 3A |
| Dimension | Dimension:144mm*144mm*115mm
Hole Size:138mm*138mm |
| Weight | 0.68kg |
| Ingress protection | IP65 |
- Introduction

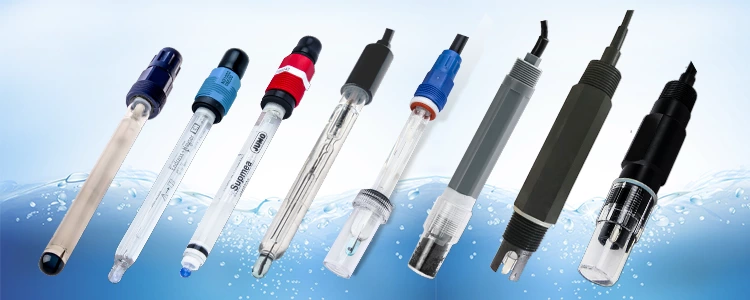

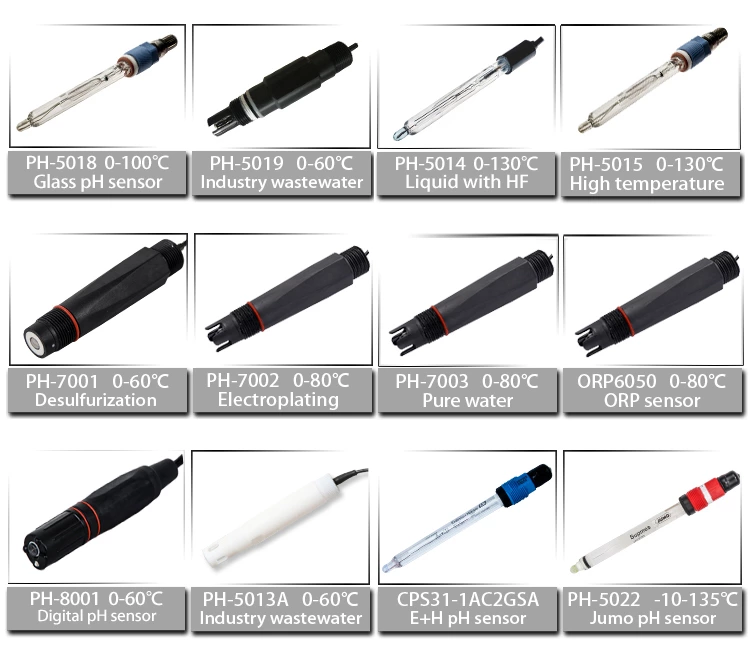

- Choose pH electrode
Offers a full range of ph electrodes for measuring different media. Such as sewage, pure water, drinking water etc.
