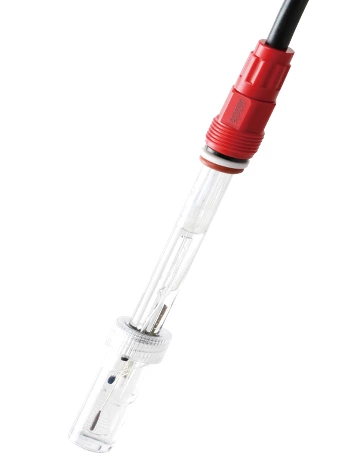

SUP-pH-5050 high temperature glass electrode used in PH measurement is also called primary cell. The primary battery is a system whose function is to convert chemical energy into electrical energy. The voltage of this battery is called electromotive force (EMF). This electromotive force (EMF) consists of two half-cells.
Features
Zero potential point: 7 ± 0.5 pH
Conversion coefficient: > 98%
Installation size: 3/4NPT
Pressure: 1 ~ 3 Bar at 25 ℃
Temperature: 0 ~ 60℃ for general cables
- Specification
| Product | Plastic pH sensor |
| Model | SUP-PH5050 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 ± 0.5 pH |
| Slope | > 96% |
| Internal impedance | 150-250 MΩ(25℃) |
| Practical response time | < 1 min |
| Installation size | PG13.5 Pipe Thread |
| NTC | NTC10K/NTC2.252K/Pt100/Pt1000 |
| Heat resistance | 0-120℃ for general cables |
| Pressure resistance | 0.4MPa |
| Connection | Low-noise cable |
- Introduction
- Application
Industrial wastewater engineering
Process measurements, electroplating plants, paper industry, drinks industry
Wastewater containing oil
Suspensions, varnishes, media containing solid particles
Two-chamber system for when electrode poisons are present
Media containing fluorides (hydrofluoric acid) up to 1000 mg/l HF
