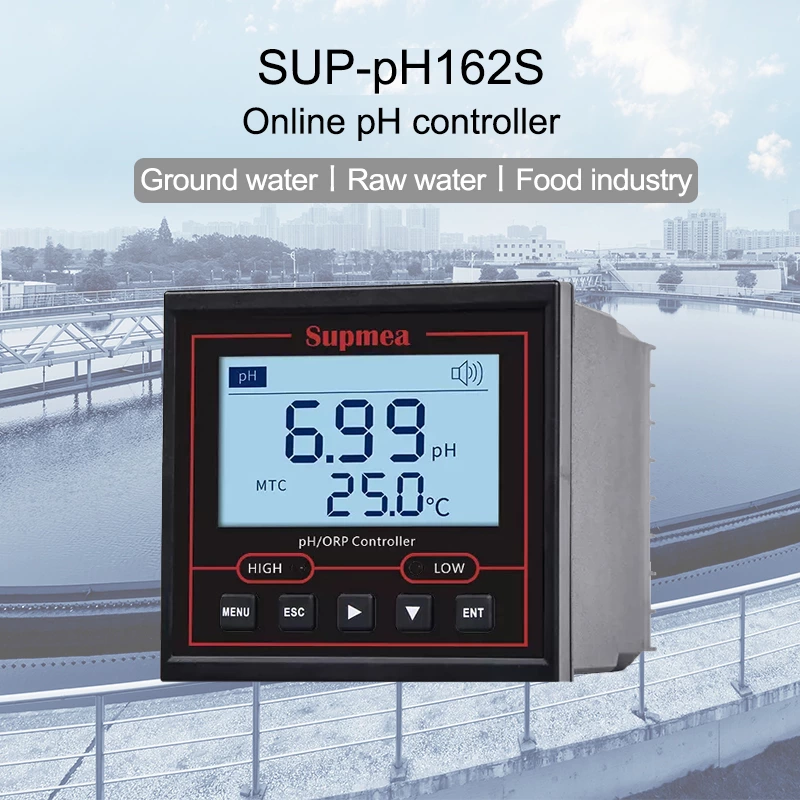

SUP-PH162S industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.
Features
Measure range: pH: 0-14 pH, ±0.02pH; ORP: -1000 ~1000mV, ±1mV
Input Resistance: ≥10~12Ω
Power supply: 220V±10%，50Hz/60Hz
Output: 4-20mA, RS485, Modbus-RTU, Relay
- Specification
| Product | pH meter, pH controller |
| Model | SUP-PH162S |
| Measure range | pH: 0-14 pH, accuracy:±0.02pH |
| ORP: -1000 ~1000mV, accuracy:±1mV | |
| Measuring medium | Liquid |
| Input Resistance | ≥1012Ω |
| Temp compensation | NTC 10K:-10~60℃ accuracy:±0.3℃
60~130℃ accuracy:±2℃ Range:-10~130℃ manual/ auto temperature compensation |
| Communication | RS485, Modbus-RTU |
| Relative humidity | 10%~85% |
| Operation temperature | 0~60℃ |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | AC: 220V±10%, 50Hz,
110V±10%, 50Hz DC: 24V |
| Relay output | AC250V, 3A |
- Introduction
SUP-pH160S Online pH meter is a multivariable analyzer used for measuring/controlling the pH and ORP with different temperature. The function is switchable on the device itself. Depending on the measured variable, combination electrodes (e. g. pH sensors) or split versions (glass electrodes with a separate reference electrode) can be readily connected.
- Features
- Automatically Temperature Compensation
- Directly switchable to PH or ORP
- PH or ORP sensors can be connected thanks to the sensor supply integrated in the output
- Using the setup program: user-friendly programming
- 4-20mA analog output
- RS485 communication
- Relay output

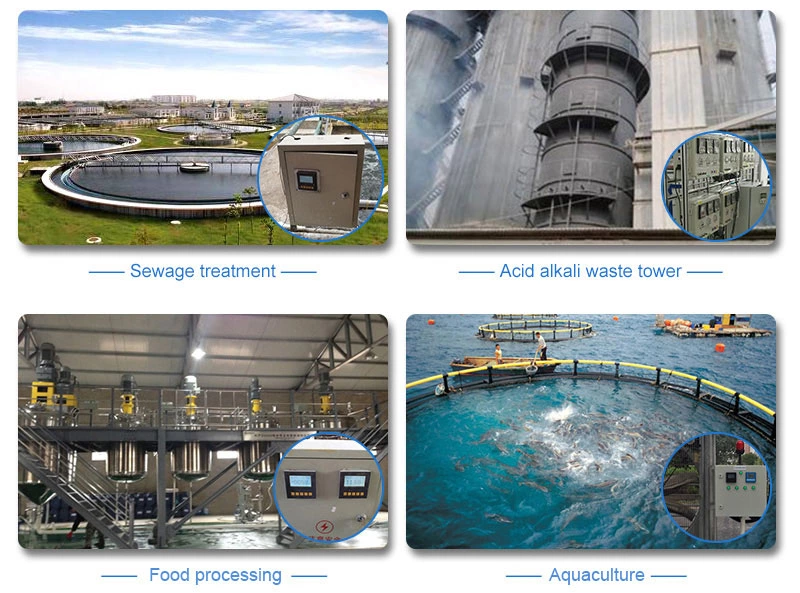

- Application

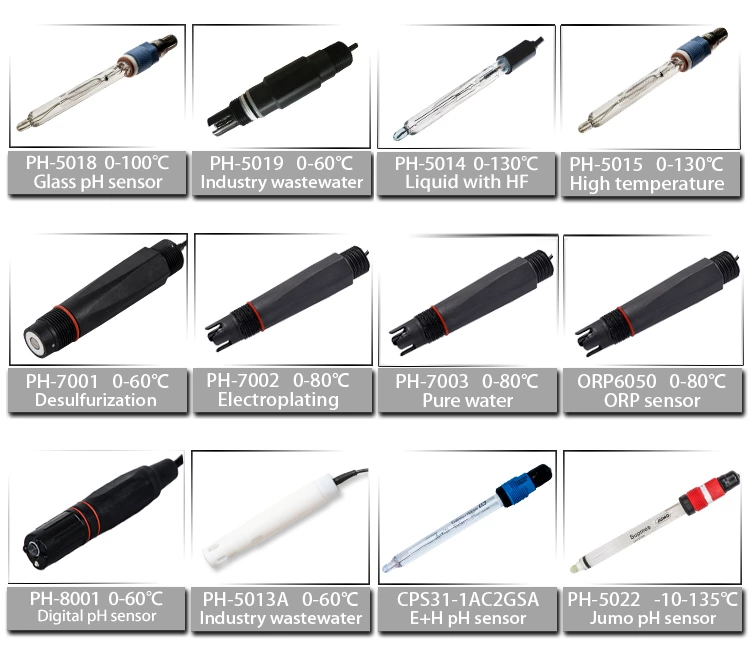

- Choose pH electrode

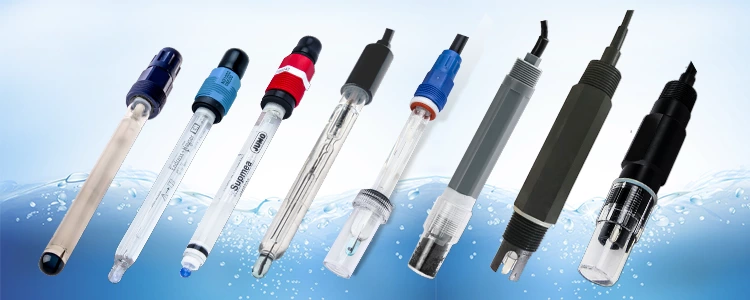

Offers a full range of ph electrodes for measuring different media. Such as sewage, pure water, drinking water etc.
