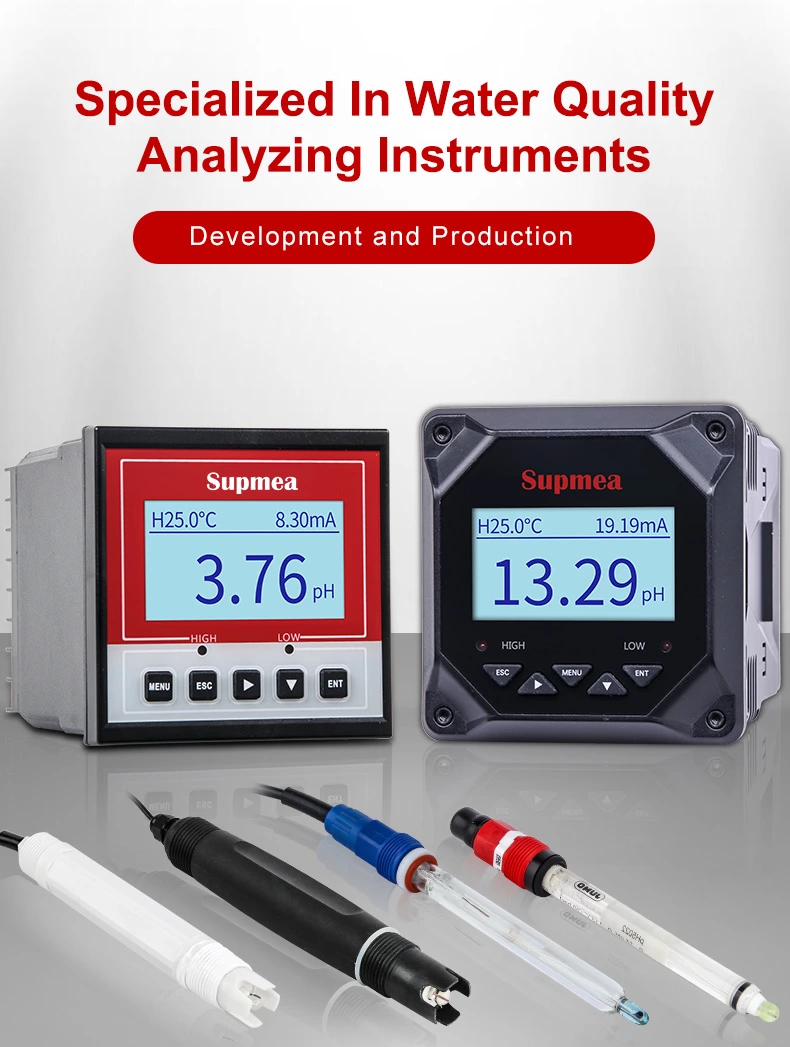

SUP-PH160S industrial pH meter is an online pH analyzer with 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.
Features
Measure range: pH: 0-14 pH, ±0.02pH; ORP: -1000 ~1000mV, ±1mV
Input Resistance: ≥10~12Ω
Power supply: 220V±10%，50Hz/60Hz
Output: 4-20mA, RS485, Modbus-RTU, Relay
- Specification
| Product | pH meter, pH controller |
| Model | SUP-PH160S |
| Measure range | pH: 0-14 pH, ±0.02pH |
| ORP: -1000 ~1000mV
-2000~2000mV(optional) |
|
| Measuring medium | Liquid |
| Input Resistance | ≥1012Ω |
| Temp compensation | NTC10K:-10~60℃ accuracy:±0.3℃
60~130℃ accuracy:±2℃ Range:-10~130℃ manual/ auto temperature compensation |
| Temperature Range | -10~130℃， NTC10K or PT1000 |
| Communication | RS485, Modbus-RTU |
| Relative humidity | (10~85)% |
| Operation temperature | 0~60℃ |
| Signal output | 4-20mA, maximum loop 750Ω, 0.2%FS |
| Power supply | AC:220V±10%，50Hz/60Hz
DC 24VDC |
| Relay output | AC250V, 3A |
- Introduction
- Features
- Easy operation
- Automatically Temperature Compensation
- Directly switchable to PH or ORP
- Large LCD display with background lighting
- PH or ORP sensors can be connected thanks to the sensor supply integrated in the output
- Using the setup program: user-friendly programming
- 4-20mA analog output
- RS485 communication

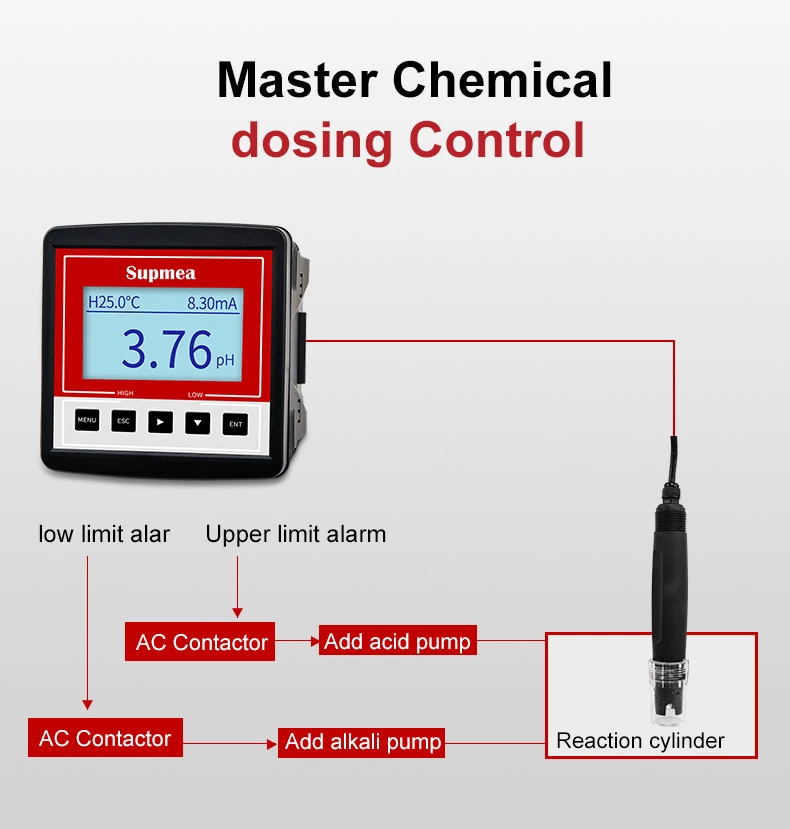

- Relay output Product parameters

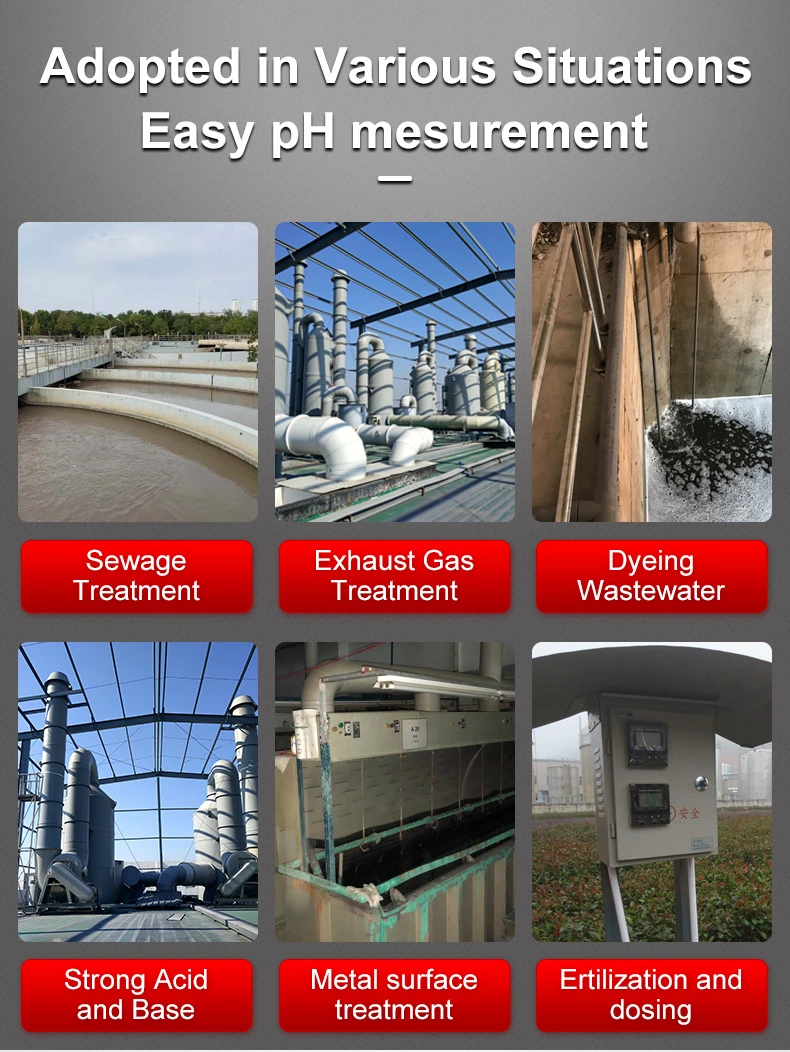

- Application

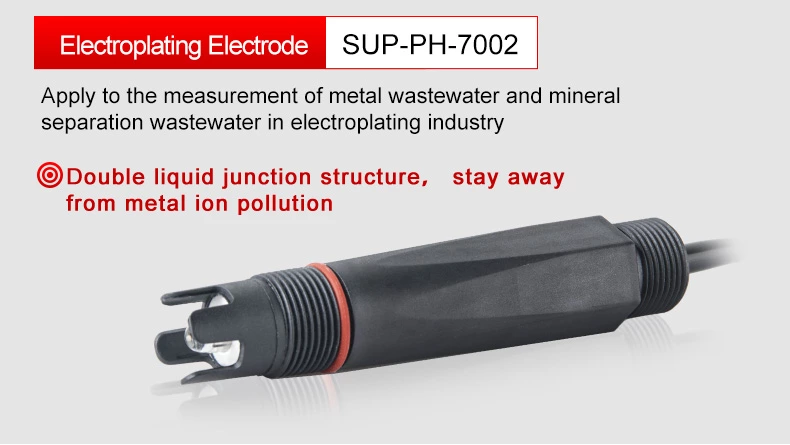

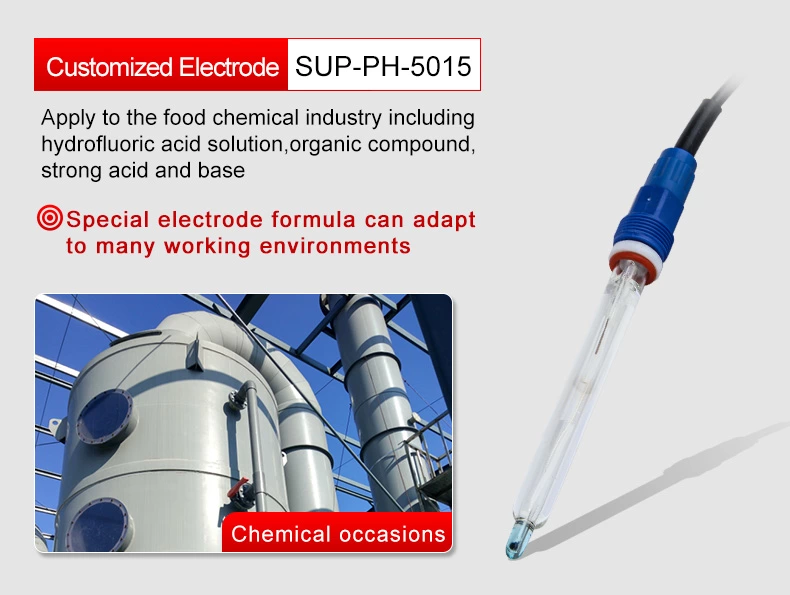

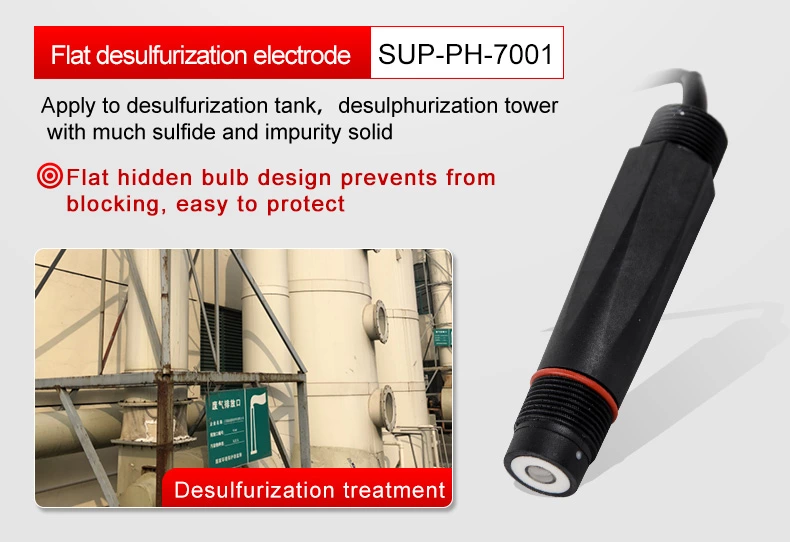

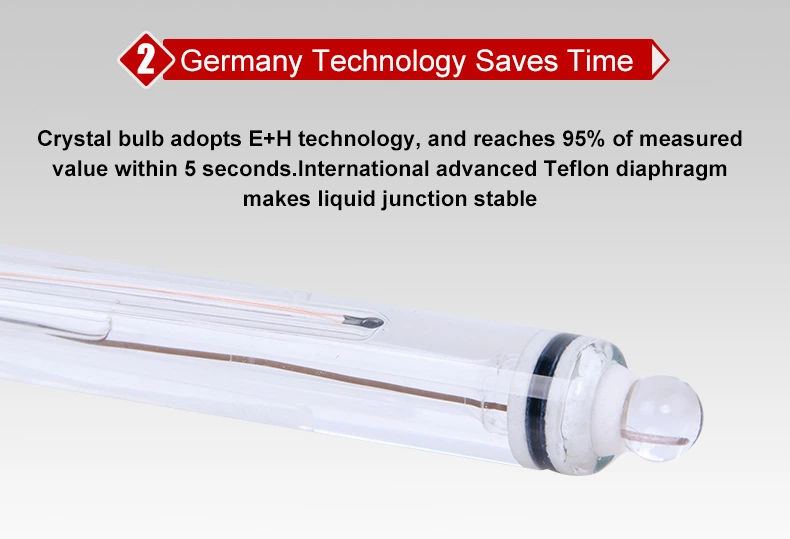

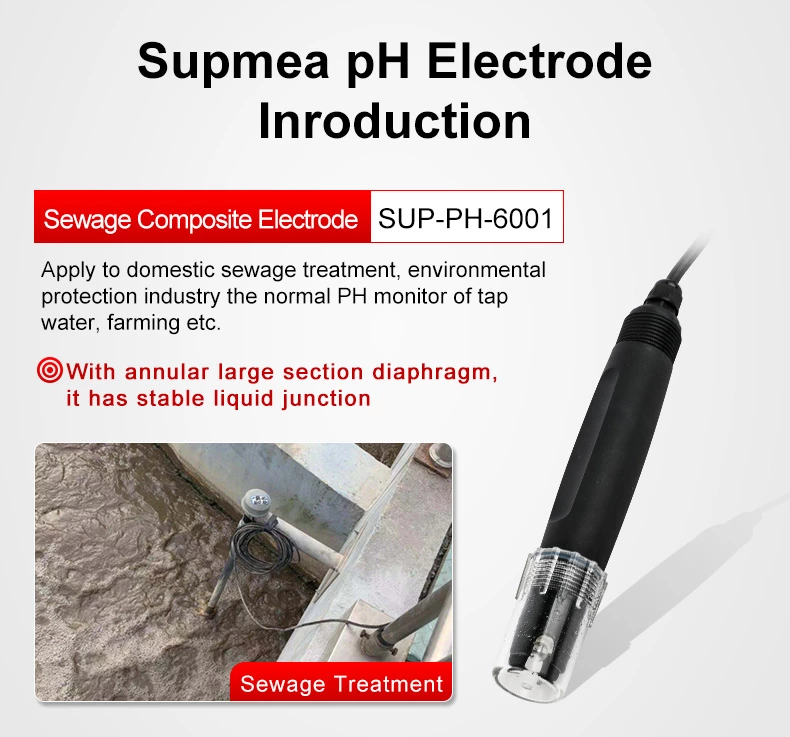

- Choose pH electrode
Offers a full range of ph electrodes for measuring different media. Such as sewage, pure water, drinking water etc.
