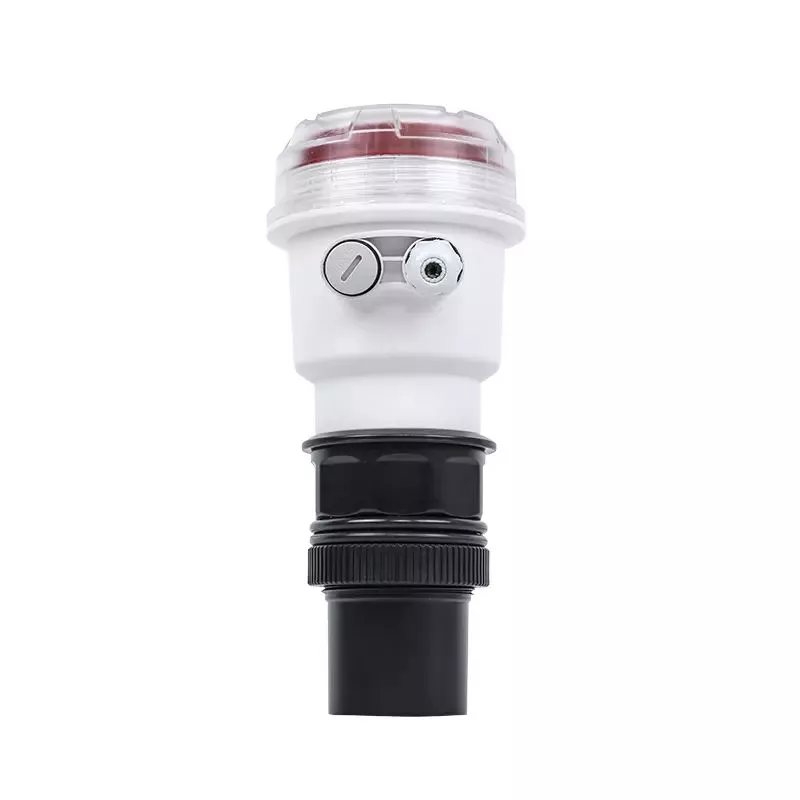

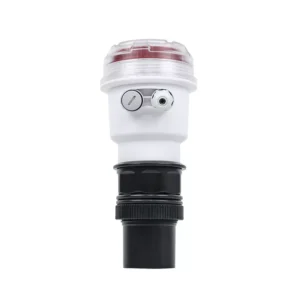

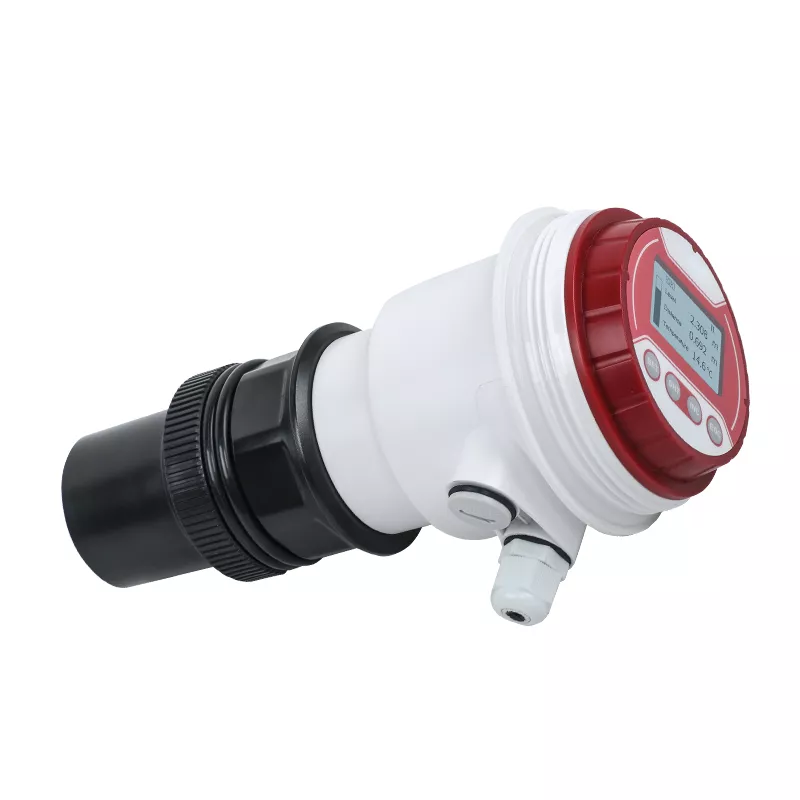

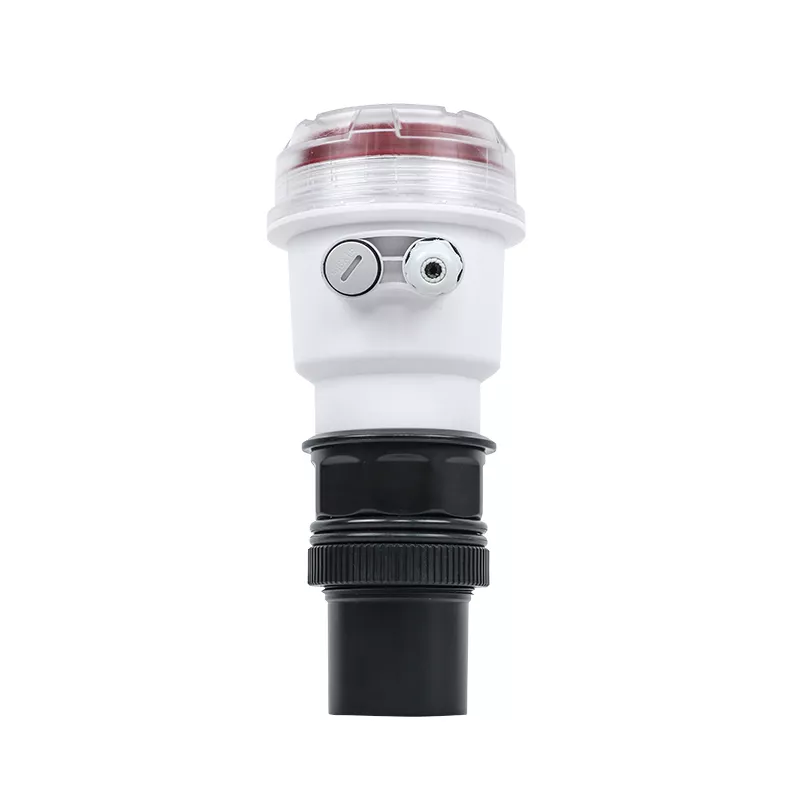

SUP-MP ultrasonic level transmitter taking the advantages of various many level measuring instruments, is a universal one characterized by total digitalized and humanized design. It has perfect level monitoring, data transmission and man-machine communication.
Features
Measure range: 0 ~ 10m
Blind zone: 0.35m
Accuracy: 0.5%F.S
Power supply: (14~28) VDC;
-
Introduction
SUP-MP ultrasonic level transmitter has perfect level monitoring, data transmission and man-machine communication. It is featured by strong anti-interference performance; free setting of upper and lower limits and online output regulation, on-site indication.
-
Specification
| Product | Ultrasonic level transmitter |
| Model | SUP-MP |
| Measure range | 5、10m (others optional) |
| Blind zone | 0.35m |

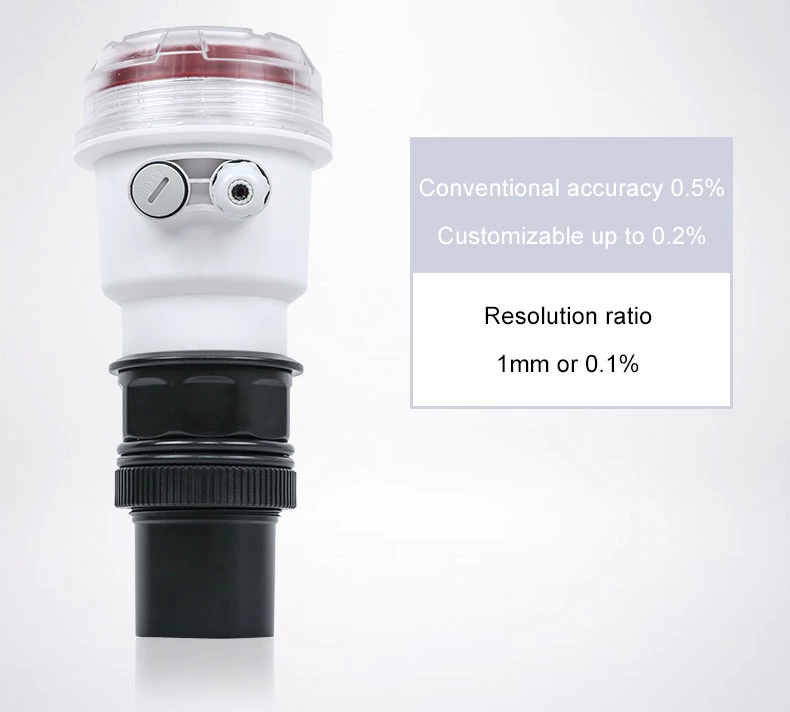

| Accuracy | ±0.5%FS |
| Display | LCD |
| Output (optional) | 4～20mA RL＜500Ω |
| RS485 | |
| 2 relays | |
| Measuringvariable | Level/Distance |
| Power supply | （14～28）VDC (others optional) |
| Power consumption | <1.5W |
| Protection degree | IP65(others optional) |
-
Features
Backup and recovery parameter set
Free adjustment of the range of analog output
Custom serial port data format

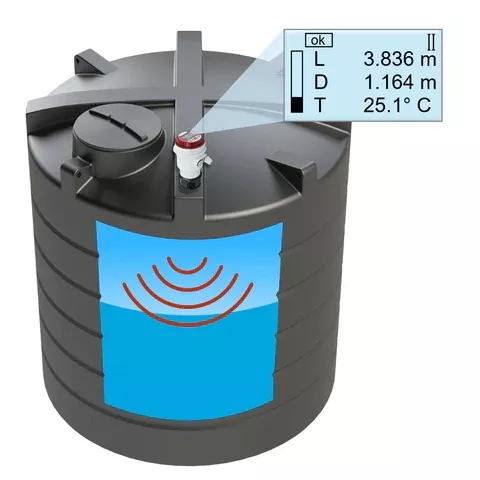

Optional increment/difference distance measurement to measure air space or liquid level
1-15 transmitted pulse intensity depending on working conditions
-
Product Description
