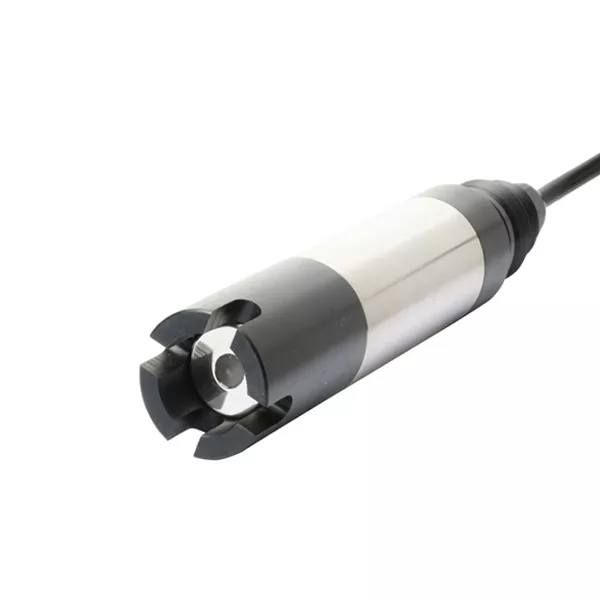

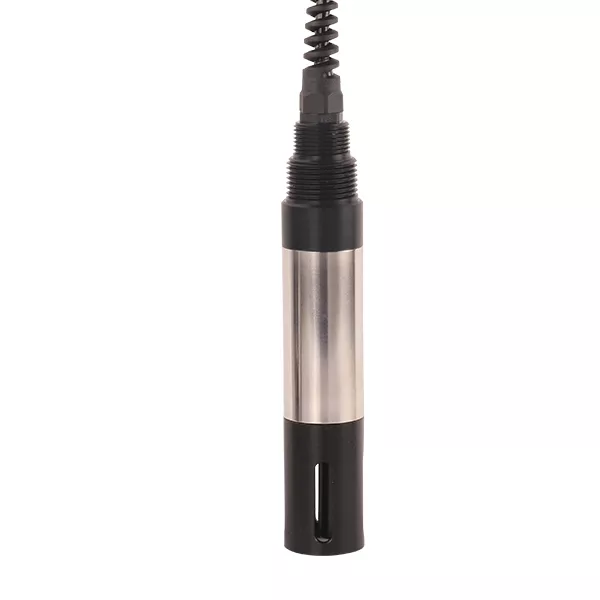

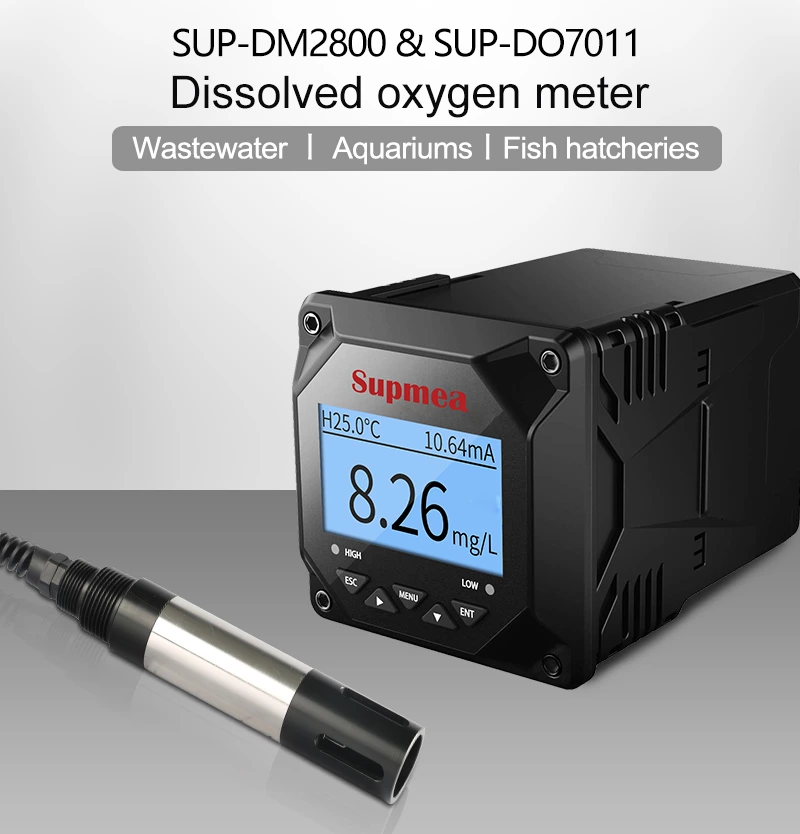

SUP-DO7011 Membrane type dissolved oxygen sensor is the measure of oxygen dissolved in an aqueous solution. Polarographic measurement principle, the dissolution value depends on the temperature of the aqueous solution, pressure and salinity in solution.
Features
Range: DO：0-20 mg/L、0-20 ppm；Temperature：0-45℃
Resolution: DO:±3% of the measured value；Temperature：±0.5℃
Output signal: 4~20mA
Temperature Type: NTC 10k/PT1000
- Specification
| Product | Dissolved oxygen sensor |
| Model | SUP-DO7011 |
| Measure range | DO：0-20 mg/L, 0.6MPa；
Temperature：0-60℃ |
| Accuracy | DO:±3% of the measured value；
Temperature：±0.5℃ |
| Temperature Type | NTC 10k/PT1000/2.252K |
| Output Type | 4-20mA output |
| Weight | 1.85Kg |
| Cable length | Standard:10m, the maximum may be extended to 100m |
